Manufacturers and Suppliers of Quality Farm Implements
|
Disc Harrows
We are the leading suppliers of disc harrows, tandem disc harrows, mounted offset disc harrows, discs for hydraulic offset. Offset disc harrows that can easily be maneuvered into corners or on short headlands can be availed from us. These offset disc harrows are widely in demand by various agricultural industries because of their robust design and excellent performance. Disc harrows are adjustable so that they could be transported without ripping up the ground. We offer offset disc harrows in mounted type, trailing type and hydraulic trailing type at cost efficient prices.
Mounted Type Disc Harrow
In mounted type disc harrows, the implement are easily attached and transportable in top speeds, less time is lost between the shed and the field. Their rigid construction and depth of penetration adapt heavy discing in tough soils
Mounted Offset Disc Harrow
Features:
- High quality boron steel disc with hardness 48~52 HRC.
- It can be used in light and medium soil.
- Tillage depth of the harrow is 127~178 mm.
- Easily transportable – as it gets easily attached and mounted.
- Used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
| SPECIFICATION |
KKMODH-12 |
KKMODH-14 |
KKCMDH-16 |
KKCMDH-18 |
KKCMDH-20 |
KKCMDH-24 |
| Frame (mm) |
100x50 (Sail Channel) & 75x10 Angle |
| Gang Axle |
Square bar |
| Disc Diameter (mm / Inch) |
560 x 4T (22") |
| No. of Disc |
12 |
14 |
16 |
18 |
20 |
24 |
| No. of Bearing Hubs |
6 |
8 |
| Type of Disc |
Front (Notched) Rear (Plain) |
| Width of Cut (mm / Inch) |
1420 (56") |
1635 (64") |
1852 (73") |
2068 (81") |
2285 (90") |
2717 (107") |
| No. of Bearing Hub |
4 |
6 |
8 |
| Distance B/W Disc to Disc |
228 (9") |
| Weight Approx (Kg) |
390 |
430 |
500 |
575 |
615 |
730 |
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
- Disc Option Available in 20"/24".
|
| |

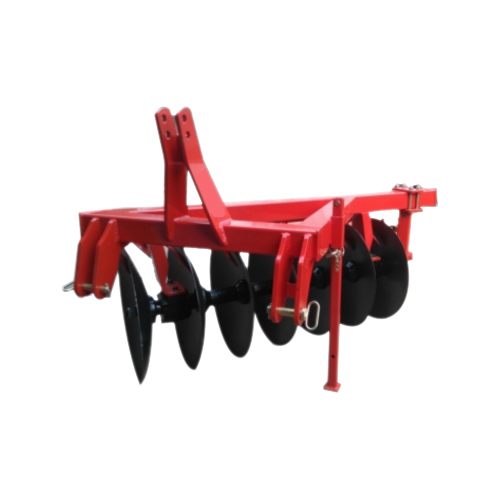

Features:
- Perfectly balanced for best ploughing results.
- Available in plain disc as well as notched disc (Both made from boron steel).
- The Poly Disc Harrow is designed to work in all type of soil breaking, soil raising, soil turning and soil mixing.
- The tractor takes minimum load while working even in toughest soil conditions.
- Bearing hubs with tapper roller bearing. Which gives best performance in field.
| SPECIFICATION |
KKPDH-6 |
KKPDH-7 |
KKPDH-8 |
KKPDH-9 |
KKPDH-10 |
| Frame (mm) |
100 mm Square Tubular Frame |
| Gang Axle |
Square bar |
| Disc Diameter (mm / Inch) |
610 x 4.5T (24") or 660 x 6T (26") |
| No. of Disc |
6 |
7 |
8 |
9 |
10 |
| No. of Bearing Hubs |
2 |
| Type of Disc |
Notched & Plain (as per requirement) |
| Width of Cut (mm / Inch) |
|
| Distance B/W Disc to Disc (mm / Inch) |
228 (9") |
| Weight Approx (Kg) |
319 |
335 |
351 |
367 |
383 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

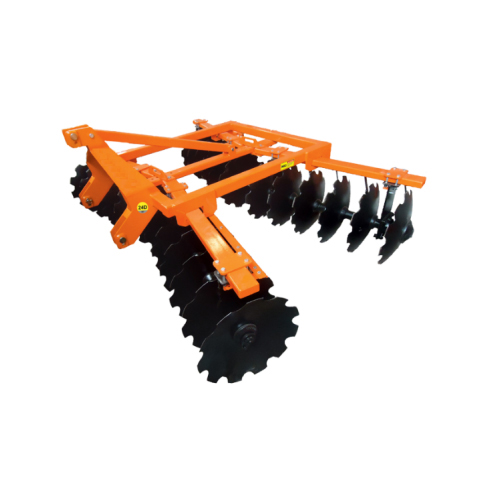

Features:
- It can be used in light and medium soil.
- High quality steel discs.
- For breaking the roots.
- Easily transportable.
- Quick hitch compatible.
| SPECIFICATION |
KKTDH-6x6 |
KKTDH-9X9 |
KKTDH-10X10 |
| Over all Width (mm / Inches) |
1423 (56") |
1800 (71") |
2256 (89") |
| Width of Cut (mm / Inches) |
1415 (56") |
1848 (73") |
2280 (90") |
| Distance B/W Disc to Disc (mm/ Inches) |
228 (9") |
| Type of Disc |
Plain / Notched Disc (As Per Requirement) |
| Disc Diameter & Thickness (mm/ Inches) |
457x3T (18") / 508x3T (20") |
| Gang Axle |
Solid Square Bar |
| No. of Disc |
12 |
18 |
20 |
| Weight Approx (Kg) |
300/662 |
385/849 |
440/970 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

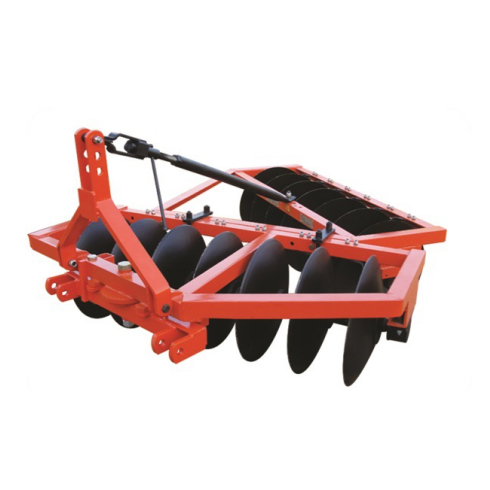

Chakli Disc Harrow (UP Model)
Features:
- For breaking the roots.
- High quality steel discs.
- It can be used in light and medium soil.
- To air the soil and to eliminate the weeds.
- Tillage depth of the harrow is 127~178 mm.
- Used in open field workings for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
- It has low purchasing and utilization costs both for its wide working width, and for its high speed (from 7 to 15 km/hour).
| SPECIFICATION |
KKUPMH-6x6 |
KKUPMH-7x7 |
KKUPMH-8x8 |
| Frame (mm) |
65x65x6 Angle |
| Frame Width (mm) |
1412 Front & Rear |
1641 Front & Rear |
1869 Front & Rear |
| No. of Bearing Hubs |
4 |
| Dual Bearing |
32308 & 6308 |
| Disc Diameter (mm/ Inches) |
558x4T (22") |
| No. of Spools |
10 |
12 |
14 |
| No. of Disc |
12 |
14 |
16 |
| Type of Disc |
Plain Disc |
| Distance B/W Disc to Disc (mm/ Inches) |
228 (9") |
| Weight Approx (Kg) |
360 |
385 |
410 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

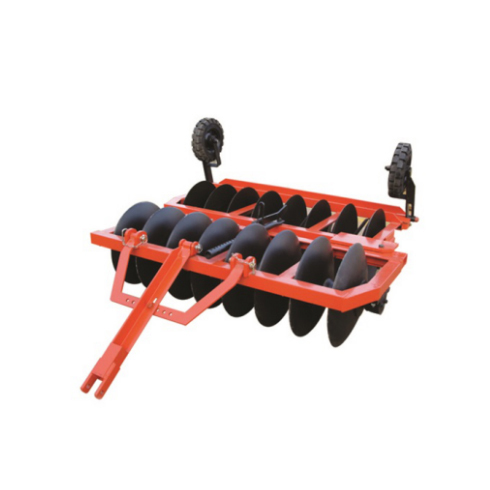

Trailing Type Disc Harrow
Trailing type disc harrows comes with easy gang adjustments which help in perfectly leveling the soil. It has sturdy frame made with supreme grade steel discs. These are available in 10 discs to 40 discs and in different specifications.
Compact Model Disc Harrow
Features:
- Easily transportable as it gets easily attached and mounted.
- Adjustable gang axles angle up to 46°.
- Used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
- Tillage depth of the harrow is 152~203 mm.
- High quality boron steel disc with 48~52 HRC hardness.
| SPECIFICATION |
KKCMDH-16 |
KKCMDH-18 |
KKCMDH-20 |
KKCMDH-22 |
KKCMDH-24 |
| Frame (mm) |
100 mm Square Tubular Frame |
| Gang Axle |
Square bar |
| Disc Diameter (mm / Inch) |
610 x 4.5T (24") or 660 x 6T (26") |
| No. of Disc |
16 |
18 |
20 |
22 |
24 |
| No. of Bearing Hubs |
6 |
8 |
| Type of Disc |
Front (Notched) Rear (Plain) |
| Width of Cut (mm / Inch) |
1912 (75") |
2125 (83") |
2345 (92") |
2562 (100") |
2778 (109") |
| Distance B/W Disc to Disc |
228 (9") |
| Weight Approx (Kg) |
785 |
875 |
965 |
1055 |
1145 |
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
- Optional : Transportation Wheels.
|
| |
Features:
- It trails behind the tractor and because of heavy design and weight can effectively break up heavy clods. And when green manure, trash or other surface growth is cross disced, the organic matter is effectively buried and mixed with the soil and decays rapidly into humus. The harrow has a strong and sturdy main frame with high quality steel discs and heavy duty chilled cast iron spools to provide centre weight. Optional wheels can be provided for towing on road.
| SPECIFICATION |
KKTH-6x6 |
KKTH-7x7 |
KKTH-8x8 |
| Frame (mm) |
Angle & Box (Optional) |
| No. of Disc |
12 |
14 |
16 |
| Type of Disc |
Plain |
| Gang Axle |
'C' Class Heavy Duty ERW Tube |
| Disc Diameter (mm/ Inches) |
610 x 4.5T (24") |
| Width of Cut (mm/ Inches) |
1449 (57") |
1635 (64") |
1882 (74") |
| Distance B/W Disc to Disc (mm/ Inches) |
228 (9") |
| Weight Approx (Kg) |
585 |
650 |
715 |
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
- Optional Gang Axle Available in 63mm Round Bar.
|
| |

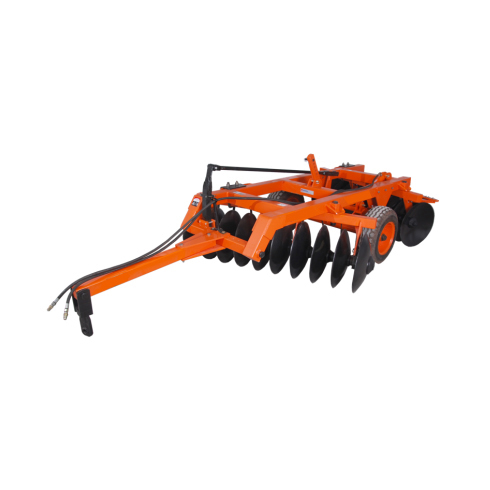

Features:
- Easy to transport on the tires using the hydraulic system.
- High quality boron steel disc with 48~52 HRC hardness.
- Effectively break up heavy clods because of sturdy design and weight.
- High quality bearings and hubs.
- Designed bearing hubs for better lubrication and less load on tractor.
- Used in open field working for shattering of clods, preparation of soil for sowing and burial of organic substances and crop residue.
| SPECIFICATION |
KKHDHH-20 |
KKHDHH-22 |
KKHDHH-24 |
KKHDHH-28 |
KKHDHH-32 |
| Frame (mm) |
Square Tubular Frame |
| Gang Axle |
Square bar |
| Disc Diameter (mm / Inch) |
610 x 4.5T (24") or 660 x 6T (26") |
| No. of Disc |
20 |
22 |
24 |
28 |
32 |
| No. of Bearing Hubs |
8 |
| Pull Type |
Trailed |
| Type of Disc |
Notched & Plain (Optional) |
| Gang Adjustment |
Manual |
| Width of Cut (mm / Inch) |
2300 (90") |
2500 (98") |
2700 (106") |
3100 (122") |
3500 (138") |
| Distance B/W Disc to Disc |
228 (9") |
| Weight Approx (Kg) |
1630 |
1760 |
1845 |
2015 |
2170 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |
Features:
- Relying on our wide experience and knowledge in this sector.
- We are counted amongst the top most leading and reputed manufacturers of Harrow Plain Disc.
- These are known for their superior performance and rugged design.
- Due to their corrosion resistant feature, our assortment is widelyacclaimed by the clients. We have complete range of Harrow Plain Disc available in different specifications.
- Our clients can avail these at market leading charges.
Specifications:
- Brand: (Hippo) Punjab Agro Sales (India)
- Material: As per requirement
|
|
| |
