Manufacturers and Suppliers of Quality Farm Implements
|
Rotary Tillers
Our comprehensive range of rotary tillers includes Chain Type Rotary tillers and Gear Type rotary Tillers. These tractor tillers are carefully designed by our experienced engineers who have a sound knowledge about these Equipments. These completely uproots stubbles of crop residue like sugarcane, cotton and paddy etc. Our range of rotary tiller also have adjustable trailing board, sealed bearings. Our durable rotary tractor tillers are made using supreme grade raw material and are powder coated.
Rotary Tiller Single Speed
Features:
- Rotary tiller can be operated in wet & dry land condition.
- Time and fuel saving.
- It is very efficient and economical.
- Side Gear drive.
- PTO Speed (RPM) 540 and 1000.
| SPECIFICATION |
KKRT-4 |
KKRT-5 |
KKRT-6 |
KKRT-7 |
| Working width (mm) |
1250 |
1500 |
1760 |
2050 |
| Overall Height (mm) |
1080 |
| Gearbox |
Single Speed |
| No. of Flanges |
5 |
6 |
7 |
8 |
| No. of Blades |
30 |
36 |
42 |
48 |
| Type of Blade |
L |
| Side Transmission |
Gear Drive |
| Required Hp |
30-40 |
40-45 |
45-55 |
55-65 |
| Weight (Kg) |
350 |
400 |
450 |
500 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

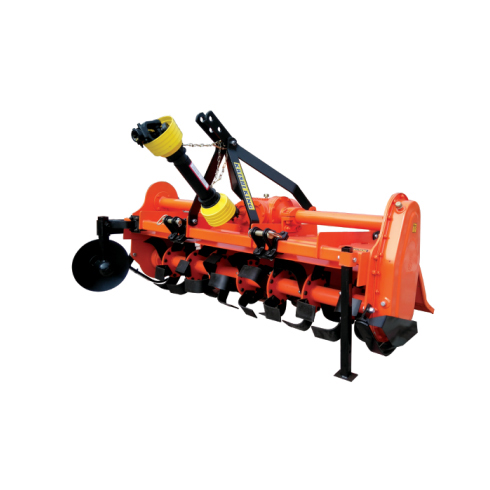

Rotary Tiller Multi Speed (Regular Series)
Features:
- Rotary tiller can be operated in wet & dry land condition.
- Time and fuel saving.
- It is very efficient and economical.
- Side Gear drive.
- PTO Speed (RPM) 540 and 1000.
| SPECIFICATION |
KKRT-4 |
KKRT-5 |
KKRT-6 |
KKRT-7 |
KKRT-8 |
| Working width (mm) |
1250 |
1500 |
1760 |
2050 |
2340 |
| Overall Height (mm) |
1080 |
| Gearbox |
Multispeed |
| No. of Flanges |
5 |
6 |
7 |
8 |
10 |
| No. of Blades |
30 |
36 |
42 |
48 |
60 |
| Type of Blade |
L |
| Side Transmission |
Gear Drive |
| Required Hp |
30-40 |
40-45 |
45-55 |
55-65 |
65-75 |
| Weight (Kg) |
365 |
415 |
465 |
515 |
575 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

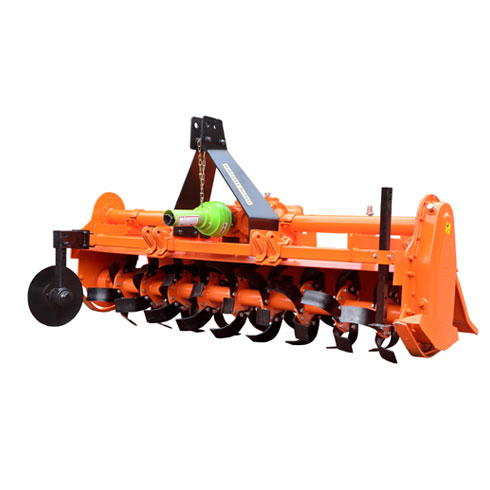

Rotary Tiller Multi Speed (Baahubali Series)
Features:
- Rotary tiller Baahubali Series can be operated in Hard & in Toughest land.
- Gear Box – 7 ltrs Gear Oil Capacity
- Gear Box both side Tubes 3”
- Suitable for all types of Soils.
- Suitable for deep tillage especially for Sugarcane & banana fields
- Time and fuel saving.
- It is very efficient and economical.
- Side Gear drive.
- PTO Speed (RPM) 540 and 1000.
- Heavy duty Three Point Linkage – 8 mm Plate
| SPECIFICATION |
KKRTBS-4 |
KKRTBS-5 |
KKRTBS-6 |
KKRTBS-7 |
KKRTBS-8 |
| Working width (mm) |
1250 |
1500 |
1760 |
2050 |
2340 |
| Overall Height (mm) |
1080 |
| Gearbox |
Multispeed |
| No. of Flanges |
5 |
6 |
7 |
8 |
10 |
| No. of Blades |
30 |
36 |
42 |
48 |
60 |
| Type of Blade (80x7 mm) |
L |
|
| Side Transmission |
Gear Drive |
| Required Hp |
30-40 |
40-45 |
45-55 |
55-65 |
65-75 |
| Weight (Kg) |
395 |
445 |
495 |
545 |
605 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |
Features:
- New blade bending which gives more depth while working in the field.
- It has extra blades which helps in making perfect soil conditions for sowing.
- All parts are developed & manufactured with high-tech precision machines which increase the durability of the machine.
- Side Gear drive.
- PTO Speed (RPM) 540 and 1000.
| SPECIFICATION |
KKGT-4 |
KKGT-5 |
KKGT-6 |
KKGT-7 |
KKGT-8 |
| Working width (mm) |
1250 |
1500 |
1760 |
2050 |
2340 |
| Overall Height (mm) |
1080 |
| Gearbox |
Multispeed |
| No. of Flanges |
8 |
9 |
10 |
11 |
12 |
| No. of Blades |
42 |
48 |
54 |
60 |
66 |
| Type of Blade |
L |
| Side Transmission |
Gear Drive |
| Required Hp |
30-40 |
40-45 |
45-55 |
55-65 |
65-75 |
| Weight (Kg) |
385 |
435 |
485 |
535 |
590 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |
